Display Testing System

HomeDisplay Testing System Project
HomeDisplay Testing System Project

about project

Intrigue architected and developed a web-enabled embedded multimedia system for testing and developing OLED TFT flat panel displays. The system is controlled through a web interface. It has embedded video storage and can play various compressed video and image files, sending them to a universal display connector. The system has a wide range of GUI adjustable power supplies necessary for experimentation with display drivers. The system is uses TI DaVinci media processor for video compression/decompression and networking, as well as Xilinx FPGAs for input and output digital image processing.



skills used

High Speed PCB TI DaVinci DSP FPGA DDR2 Embedded Linux Multimedia Video/h.264 C JavaScript PHP SQLite HTML



client

AdvantechUS, Inc.

Welcome to Intrigue Tehnologies, Inc.
Now loading. Please wait.

Slide background

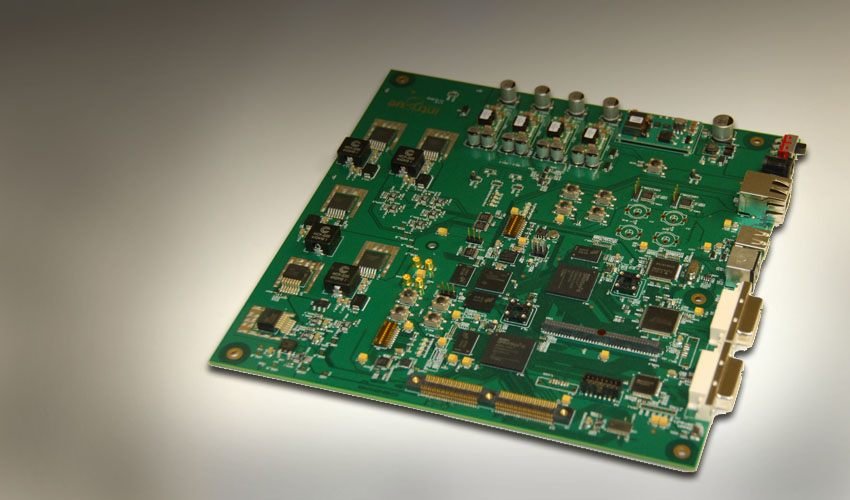

Display Driving and Testing System

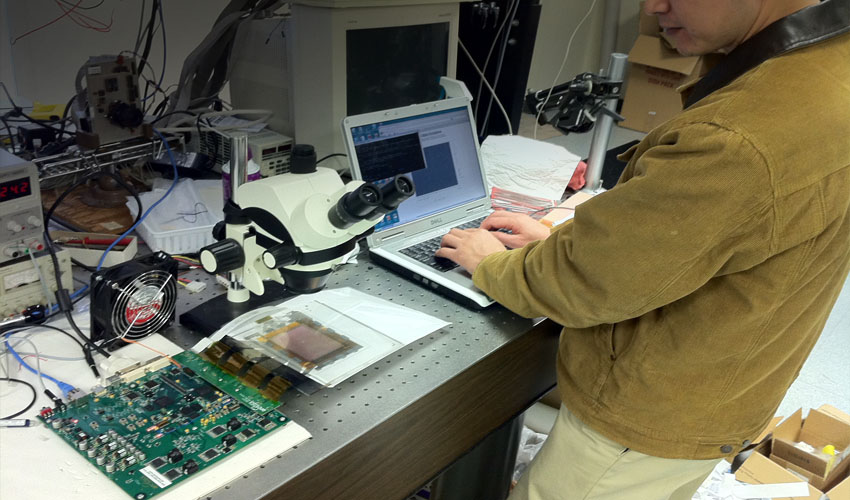

The system is network-enabled.
It is controled through a web interface.
Slide background

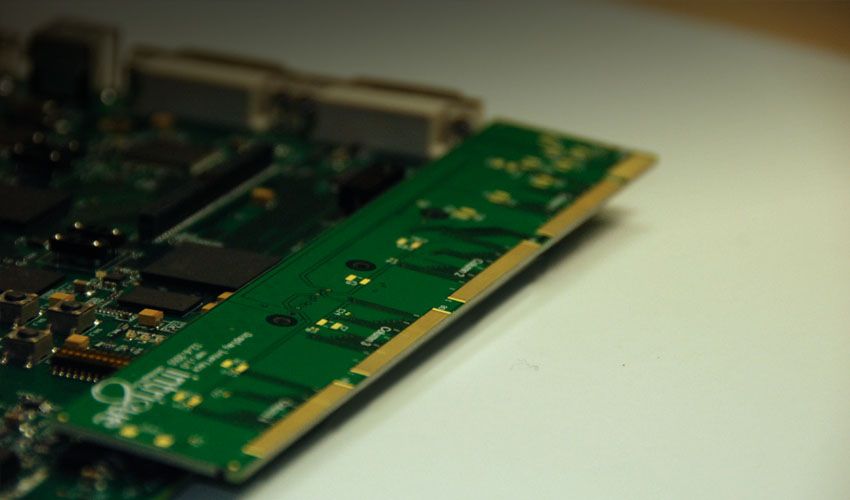

Zero Insertion force (ZIF) connector

The universal ZIF conects the testing sytem to a display interface PCB
Slide background

Assembled Display Interface PCB

The interface PCB provides connections to the display.
Slide background

Connection to Display Panel

The interface PCB provides custom interface to the display driver chips. The interface PCB is consumed with each display since the driver chip connections are bonded to the PCB. When display changes, only the interface PCB needs to be redesigned.
Slide background

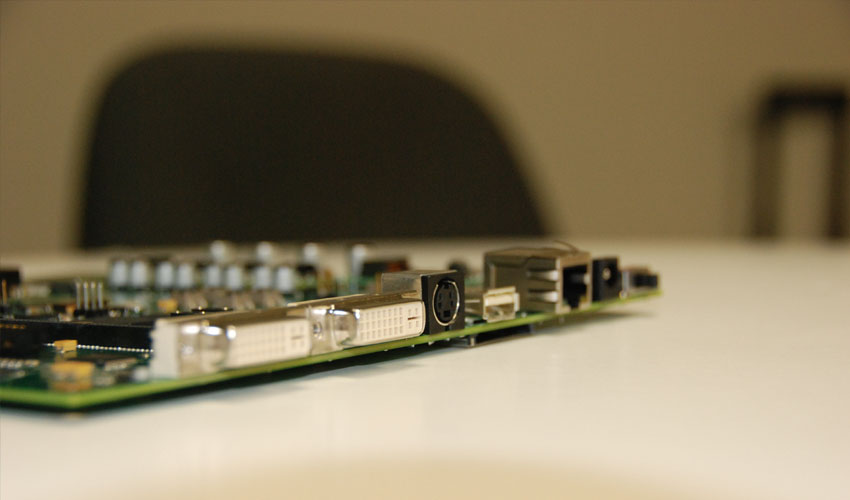

Video I/O options

In additon to digital video files that are stored on an SD card, DVI, S-video, and other I/O options are available.
Slide background

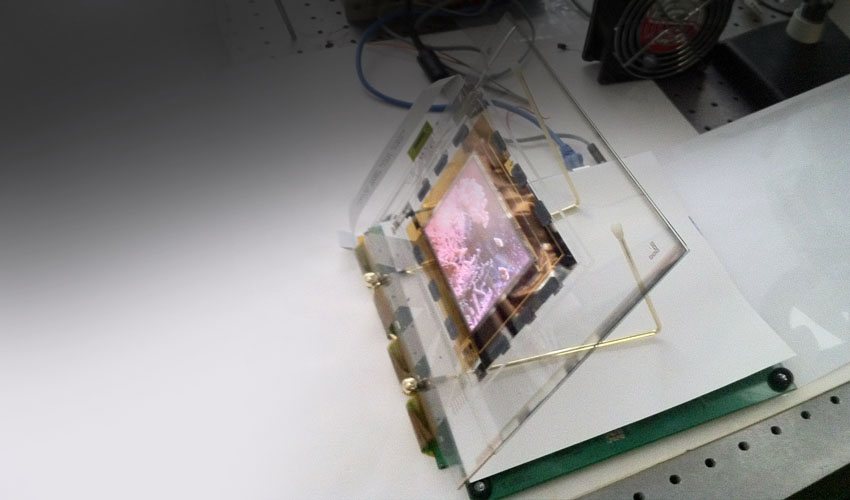

Driving an OLED Flat Panel Display

The driving system and display laying flat.
Slide background

Driving an OLED Flat Panel Display

The driving system folded under display.
